Longitudinal Welded CS pipes, 24"*9.53 mm,API- 5L, Gr.B, Beveled Ends
Key Specifications / Features
Model no.: GWS-PIPE-716 Hits: 3
China Longitudinal Welded CS pipes, 24"*9.53 mm,API- 5L, Gr.B, Beveled Ends
Request a quote
share
Tags
Detail Information
O.D: DN15-DN2400
W.T: 2.11mm-39mm
Standards: GBT3091/9711,API 5L, ASTM A53, A671, A672, A252, EN10219,EN10210
Grade: Q235,Q345,X42-X70,A,B,Gr.2, CC60,CC65,S235,S275,S355

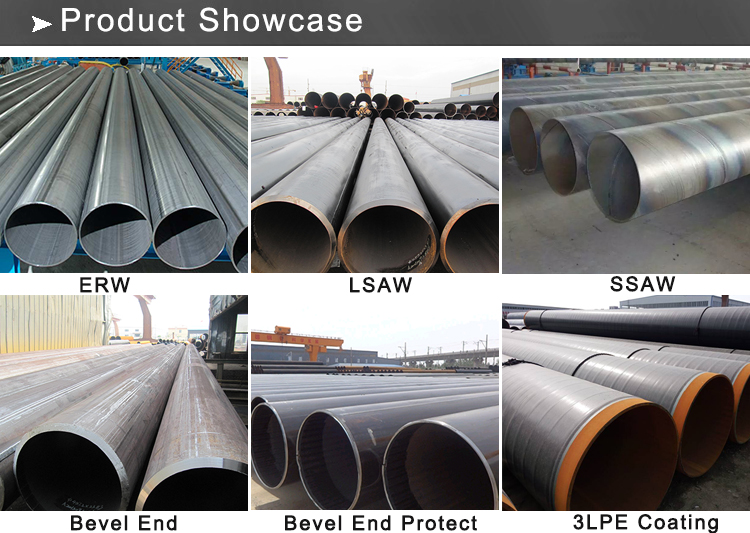

Manufacture method: ERW/HFW electric resistance/high frequency welded, SSAW spiral submerged arc welded, LSAW longitudinal submerged arc welded
Surface: Oiled or black painted to prevent rust, galvanized, or special coating like 3LPE/FBE
Devliery Condition: As Welded, +N,+M,+QT
Marking: As per standard & customer's requirements
Packing: Caps on two ends of every pipe to protect the end bevel, In hexagonal shape bundles wrapped with strong steel trip 2MT/bundle for size below DN200/8”, bare packing for DN200/8” and above .
Application: Oil and gas industry, chemical industry, water convey, steel structure, shipping building, bridge building,piling...
W.T: 2.11mm-39mm
Standards: GBT3091/9711,API 5L, ASTM A53, A671, A672, A252, EN10219,EN10210
Grade: Q235,Q345,X42-X70,A,B,Gr.2, CC60,CC65,S235,S275,S355
Manufacture method: ERW/HFW electric resistance/high frequency welded, SSAW spiral submerged arc welded, LSAW longitudinal submerged arc welded
Surface: Oiled or black painted to prevent rust, galvanized, or special coating like 3LPE/FBE
Devliery Condition: As Welded, +N,+M,+QT
Marking: As per standard & customer's requirements
Packing: Caps on two ends of every pipe to protect the end bevel, In hexagonal shape bundles wrapped with strong steel trip 2MT/bundle for size below DN200/8”, bare packing for DN200/8” and above .
Application: Oil and gas industry, chemical industry, water convey, steel structure, shipping building, bridge building,piling...
